Context

Cutting

Description

Pic

Cat

East

North

Max Width

Max Length

Depth/Height

Layer

Overlies/Seals

Overlain/Sealed by

Cuts

Cut by

Abuts/Contiguous

Associated with

Hand FS

Typed FS

Any FS

PDF URL

Hand drawi

Ink drawing

F00601

CIV

Gull area, S of F00622 Layer (1): topsoil of dark earth. Layer (2): Loose chipples. Layer (3): Brown soil - root and animal derived, filling stokeholes, burrows etc.

PDF

F00622

http://www.

http://www

F00602

CIV

Bank at W end of CIVb, W of F00603. Layer (1): topsoil. Layer (2): Medium sized and small tumble. Layer (2a): Chipples. Layer (3): Major tumble of clean stone with white and pink limestone dust

PDF

=F00853(1)

http://www.

http://www

F00603

CIV

Ditch running N-S. Layer (1): Topsoil. Layer (2): Limestone chipples with leached topsoil. Layer (3): Creamy pink limestone dust and chipples. Layer (4): Stoney mass of tumble and dark soil. Layer (5): White limestone dust with medium and large slabs. Layer (6): Pink dust wash and silting. Layer (7): Pale grey pink chipples and dust. Layer (8): White limestone dust with medium and large slabs

PDF

http://www.

http://www

F00604

CIV

Flat tract east of F00603. Layer (1): Topsoil. Layer (2): Small stones

PDF

http://www.

http://www

F00605

CIV

Possible posthole

PDF

http://www.

http://www

F00606

CIV

Semicircle of stones

PDF

http://www.

http://www

F00607

CIV

Semicircle of burnt small stones

PDF

http://www.

http://www

F00608

CIV

Circle of burnt small stones

PDF

http://www.

http://www

F00609

CIV

Circle of burnt small stones

PDF

http://www.

http://www

F00610

CIV

Small burnt patch in east end of cutting

PDF

http://www.

http://www

F00611

CIV

Bank. N-S axis, E end of CIVb. Layer (1): Topsoil over bank in east. Layer (2): Small angular stones with topsoil. Layer (3a): Small angular stones with brown soil. Layer (3b): Small angular stones with black soil and some burning. Layer (4): Large slabs with brown soil.

PDF

http://www.

http://www

F00612

CIV

Ditch in SW corner of CIVa. Layer (1): topsoil. Layer (2): Chipple wash from F00611. Layer (2b): Small stones and brown earth. Layer (2c): Fragmented bedrock, root disturbed. Layer (3): Chipples and small stones, in black earth. Layer (4): Medium and large stones, with pink and white limestone dust. Layer (5): small stones and brown earth

PDF

http://www.

http://www

F00613

CIV

Line of burnt stones in F00604

PDF

http://www.

http://www

F00614

CIV

Patch of burnt bedrock, a hearth, consisting of three separate layers of burned stones, extending to a depth of 30 cms in a rough circle about 105 cms diameter. There was no sign of further structures (for example, screen or posts) beside the hearth. This was the first element of A7 to be identified

PDF

105 cms diam

30 cms

http://www.

http://www

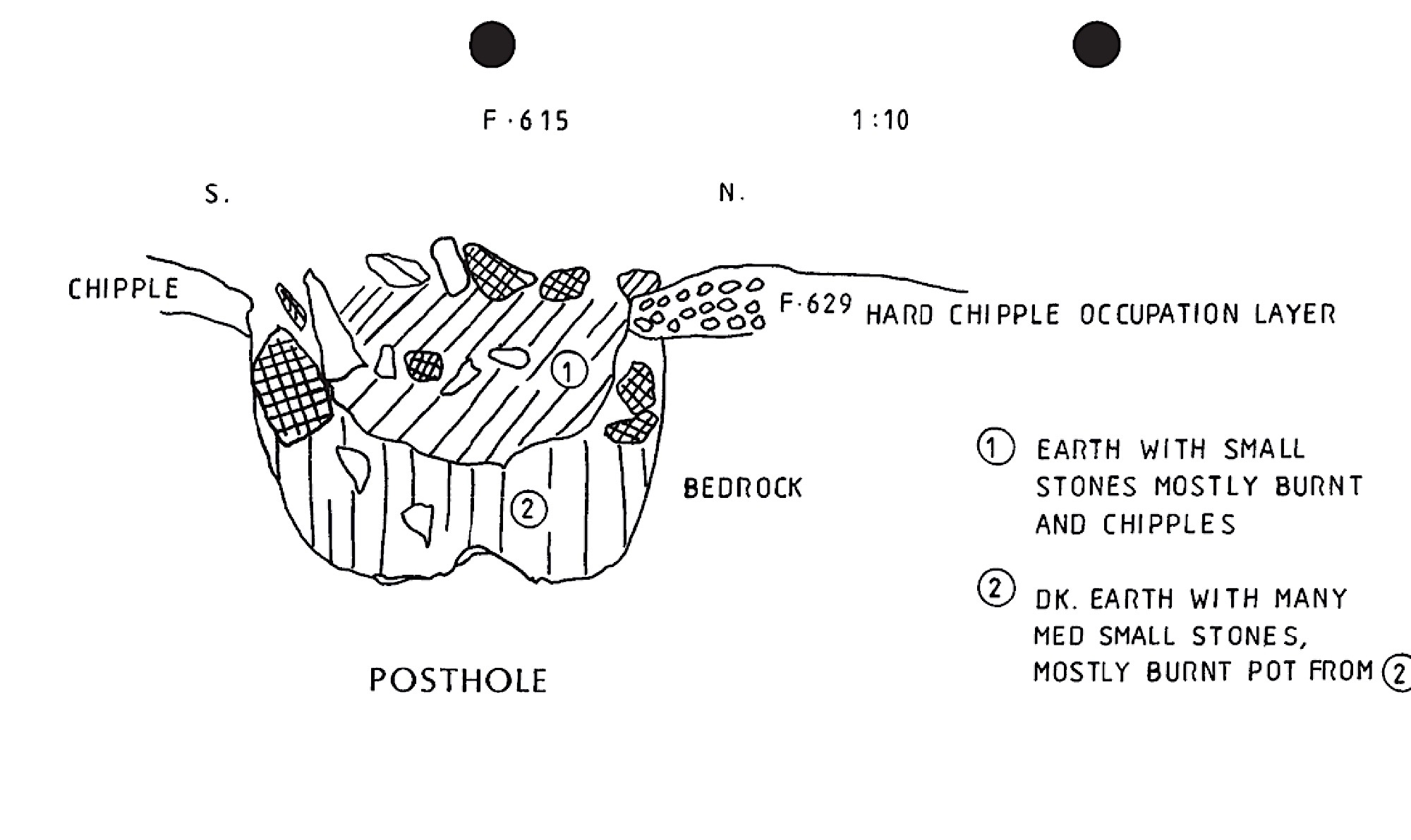

F00615

CIV

Posthole containing layers (1): earth with small stones, mostly burnt and chipples. (2): dark earth with many medium to small stones, mostly burnt. Pot from layer (2). This is a two period posthole. Layer (2) is a large round posthole, shown in section, about 20 cms W of its centre. It contained v burnt limestone pieces and dark wet earth. Layer (1), the later post hole was visible on the surface about 30 cms to the W of the centre of F00615(2), and is shallow, containing many burnt stones.

PDF

F00629 edge

Bedrock

http://www.

http://www

F00616

CIV

Possible posthole

PDF

http://www.

http://www

F00617

CIV

Palisade trench, about 17m long, 36 cms wide and 25 cms deep, containing some packing stones and a quantity of earth and small stones. There was no stratification to link this with the postholes of A7, but the trench ran close to and parallel with the southern line of the EIA structure. The Finds from F00617 were very numerous, and consisted of: rims and 18 body sherds of limestone gritted pottery [CH72/1721,1725,1728,1817, 3014, 3020, 3020, 3027, 3029, 3034, 3038/3145]; 20 lumps daub [CH 72/1721, 1727]; 15 frags bone [CH 72/1723, 1814, 1816, 1866, 1867, 1946]; 1 tooth [CH72 / 3144];1 arrowhead [CH72/1720] 6 flakes flint (two utilised) [CH 72/1819, 3013, 3017, 3028],1 frag polished sandstone [CH 72/ 1722], and slag and charcoal [CH 72/1724]. On the whole this assemblage seems more like that of the Neolithic (particularly the rims), and so it is more probable that F00617 should be regarded as an outlying feature of ditch F00603

PDF

36 cms

17 metres

25 cms

gully by A7

http://www.

http://www

F00618

CIV

Burnt stones in F00604(1)

PDF

http://www.

http://www

F00619

CIV

Upturned stone group in F00604

PDF

http://www.

http://www

F00620

CIV

Burned area in F00604

PDF

http://www.

http://www

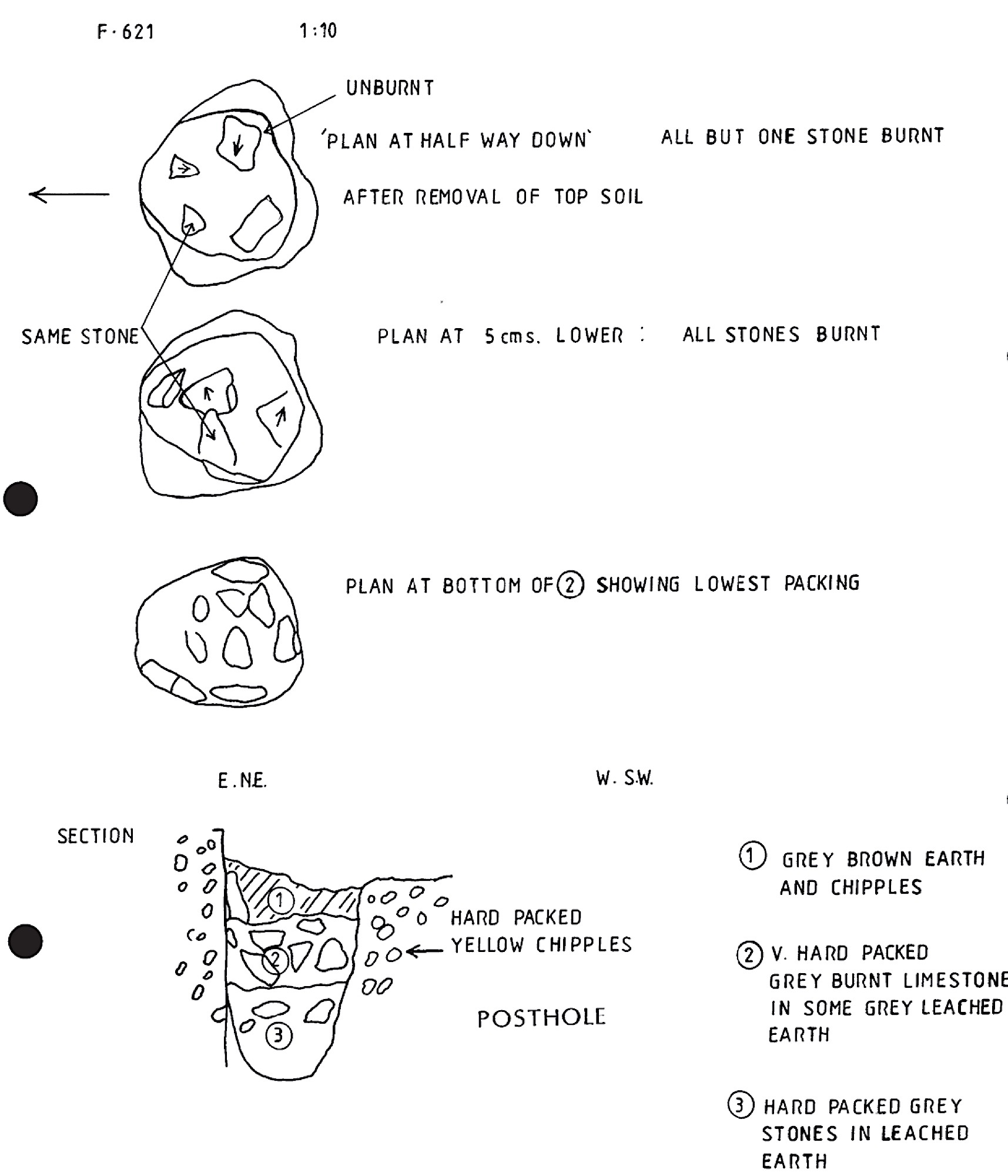

F00621

CIV

Circle of burnt stones at edge of F00622 . Infill of grey brown earth and very small brown chipples.

PDF

http://www.

http://www

F00622

CIV

Small rubble platform, layer 1 topsoil, layer 2 small stones chipples and light brown soil. Groups of larger stones at W end for the western 4 m.

PDF

http://www.

http://www

F00623

CIV

Patch of burned bedrock

PDF

http://www.

http://www

F00624

CIV

Patch of burnt rubble

PDF

=F00643

http://www.

http://www

F00625

CIV

Patch of burned stones

PDF

http://www.

http://www

F00626

CIV

Possible posthole

PDF

http://www.

http://www

F00627

CIV

Possibly stakehole

PDF

http://www.

http://www

F00628

CIV

Hearth

PDF

http://www.

http://www

F00629

CIV

Probable house floor of structure D11
Layer (1): chipples and brown soil, tinged red in parts. At level of top of hearth, therefore either contemp or later than hearth
layer (2)

PDF

http://www.

http://www

F00630

CIV

Possible posthole

PDF

http://www.

http://www

F00631

CIV

Palisade trench or small ditch

PDF

=F00617

http://www.

http://www

F00632

CIV

Posthole, associated with F00631

PDF

F00631

http://www.

http://www

F00633

CIV

Small cluster of burned stones, possibly assocated with F00629, F00605, F00606

PDF

http://www.

http://www

F00634

CIV

Flat tract in cutting. Layers (1): topsoil (2): weathered small stones with topsoil (3): irregular broken stones (4): chipples, brown soil, and small stones, with many sherds of pottery (5): brown soil and small stones, sealed by F00637(1) and probably equated with F00699(1).

PDF

http://www.

http://www

F00635

CIV

Flat tract, layer 1, topsoil, and 2 ragstone with brown soil

PDF

http://www.

http://www

F00636

CIV

Posthole on the edge of F00622

PDF

http://www.

http://www

F00637

CIV

A group of stones, some burned

PDF

http://www.

http://www

F00638

CIV

Burning and charcoal, suggestive of collapsed timber

PDF

http://www.

http://www

F00639

CIV

Burnt stone in ?Posthole over F00601

PDF

http://www.

http://www

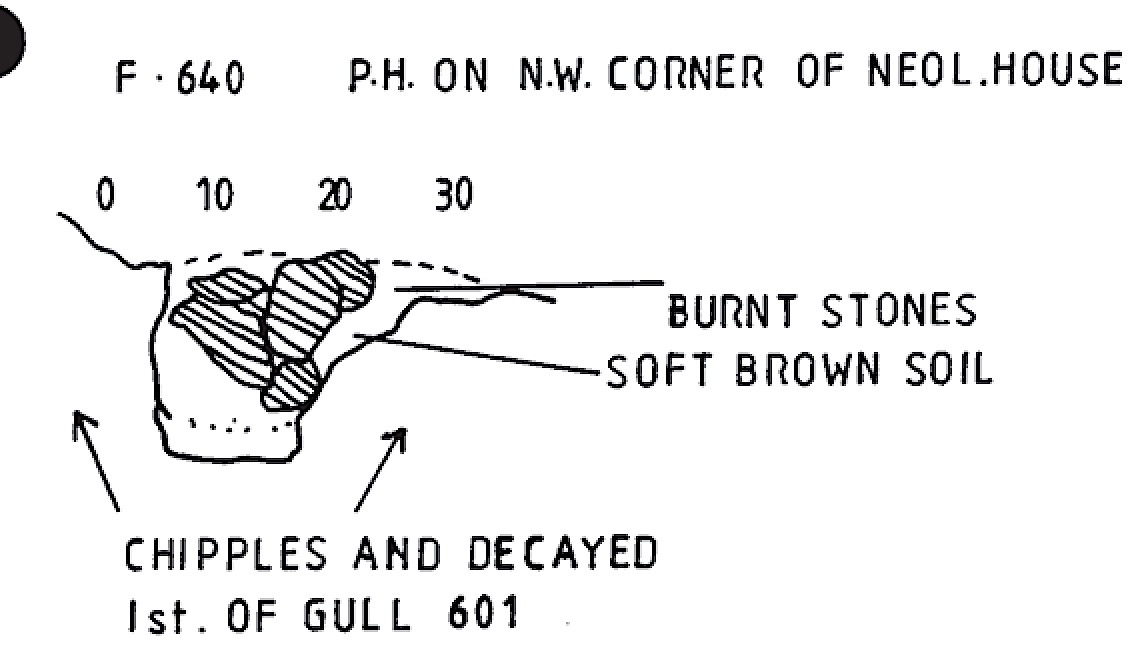

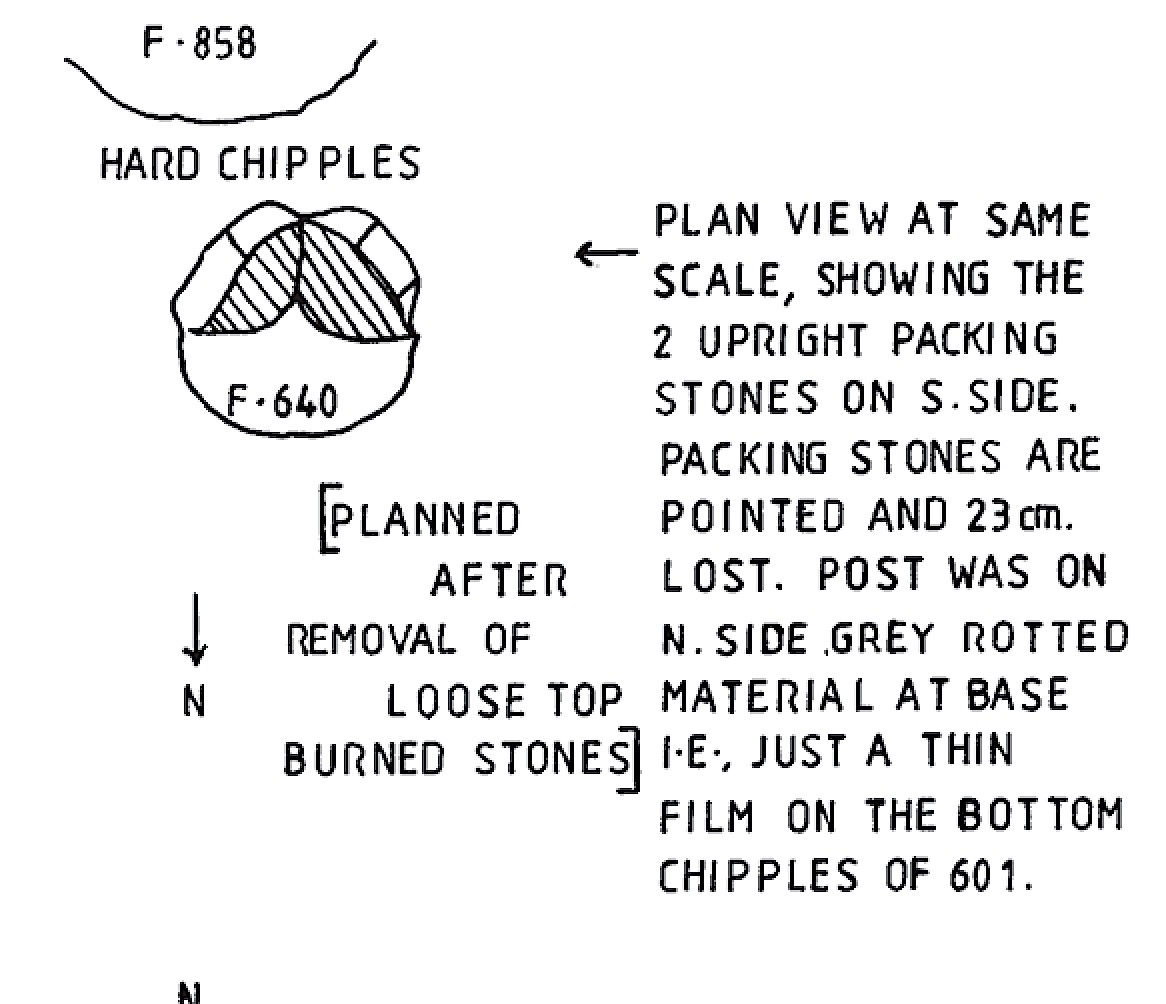

F00640

CIV

Cluster of burned stones over gull, with posthole on NW corned of house

PDF

20 cms

18 cms

http://www.

http://www

F00641

CIV

Furrow in gull, caused by animal action

PDF

http://www.

http://www

F00642

CIV

Patch of burned stones

PDF

http://www.

http://www

F00643

CIV

Probable posthole

PDF

65 cms

23 cms

http://www.

http://www

F00644

CIV

Patch of burned stones

PDF

http://www.

http://www

F00645

CIV

Patch of burned stones

PDF

http://www.

http://www

F00646

CIV

Possible posthole

PDF

http://www.

http://www

F00647

CIV

Disturbance, layered:
(1): Topsoil
(2): Small angular stones with topsoil, =F00611(2)
(3): Small to medium angular stones with dark soil, =F00611(3a)
(4): Pink limestone dust, sealed by F00647(3)

PDF

http://www.

http://www

F00648

CIV

Posthole with an infill of two layers. Layer (1): light brown earth and small stones, to a depth of half-way down the posthole. Layer (2): small, medium and large packing stones, collapsed into a grey-yellow matrix at the bottom of the posthole.

PDF

65 cms

60 cms

posthole of A7

http://www.

http://www

F00649

CIV

Posthole largely filled with light brown soil and few stones, and with a cone at the top of hard packed small stones, which probably represent the collapsed postpipe: the post apparently did not come down to the bottom of the hole.

PDF

70 cms

45 cms

posthole of A7

http://www.

http://www

F00650

CIV

Posthole with a fill consisting largely of light brown earth, and medium stones towards the bottom. The post appeared to have been placed centrally.

PDF

63 cms

59 cms

posthole of A7

http://www.

http://www

F00651

CIV

Posthole immediately to the west of F00655, on the outer lip of Neolithic ditch F00603.

PDF

http://www.

http://www

F00652

CIV

Posthole, cut within the Neolithic ditch, and visible as a semi-circular ledge in the western edge of 603. The infill was of brown soil and a few stones: the eastern edge of the posthole was lost in the ditch.

PDF

posthole of A7

http://www.

http://www

F00653

CIV

Posthole containing fine dark soil and roots, and some packing stones at the bottom.

PDF

57 cms

36 cms

posthole of A7

http://www.

http://www

F00654

CIV

Posthole cut into solid bedrock outside ditch F00603

PDF

39 cms

30 cms

posthole of A7

http://www.

http://www

F00655

CIV

Posthole with an infill consisting of a layer of medium-brown soil at the bottom, and a considerable number of medium to large packing stones at the centre and upper parts of the hole.

PDF

52 cms

55 cms

posthole of A7

http://www.

http://www

F00656

CIV

Posthole filled with soil and small stones, close to F00653, and lying between palisade F00617 and ditch F00603. This posthole may belong to the A7 group, but its position beside a gap in F00617 suggests rather that it should be considered part of that feature.

PDF

35 cms diam

23 cms

http://www.

http://www

F00657

CIV

Posthole

PDF

56 cms

46 cms

posthole of A7

http://www.

http://www

F00658

CIV

Burnt patch

PDF

http://www.

http://www

F00659

CIV

Posthole

PDF

52 cms

20 cms

posthole of A7

http://www.

http://www

F00660

CIV

Possible posthole

PDF

75 cms

61 cms

http://www.

http://www

F00661

CIV

Patch of burnt stones NE of F00613

PDF

http://www.

http://www

F00662

CIV

Circular patch of silty material

PDF

http://www.

http://www

F00663

CIV

Disturbance with angular stones, of which layer (1)= F00611(3a) and layer (2) = F00611(3b)

PDF

F00611(3b)

http://www.

http://www

F00664

CIV

Disturbance with angular stones, of which layer (1)= F00611(3a) and layer (2) = F00611(3b)

PDF

F00611(2)

http://www.

http://www

F00665

CIV

Disturbance with angular stones

PDF

120 cms

20 cms

http://www.

http://www

F00666

CIV

Possible posthole to north of F00647

PDF

http://www.

http://www

F00667

CIV

Possible posthole, to west of F00612

PDF

35 cms

34 cms

F00611(3a)

http://www.

http://www

F00668

CIV

Tree root disturbance

PDF

http://www.

http://www

F00669

CIV

Disturbance

PDF

http://www.

http://www

F00670

CIV

Posthole

PDF

F00611(3a)

http://www.

http://www

F00671

CIV

Posthole, to west of F00612

PDF

35 cms

25 cms

F00611(3a)

http://www.

http://www

F00672

CIV

Possible posthole, which has been damaged by roots

PDF

http://www.

http://www

F00673

CIV

Possible posthole

PDF

47 cms

17 cms

http://www.

http://www

F00674

CIV

Disturbed area

PDF

240 cms

18 cms

F00611(2) or F00604(2)

http://www.

http://www

F00675

CIV

Disturbed area with upturned stones

PDF

http://www.

http://www

F00676

CIV

Disturbed area with upturned stones between F00665 and F00668

PDF

http://www.

http://www

F00677

CIV

Berm between F00611 and F00612

PDF

http://www.

http://www

F00678

CIV

Possible posthole

PDF

62 cms

20 cms

F00611(3b)

http://www.

http://www

F00679

CIV

Posthole, to north of F00644

PDF

33 cms

27 cms

http://www.

http://www

F00680

CIV

A depression, almost certainly a natural embayment at the eastern end of F00644

PDF

70 cms

38 cms

http://www.

http://www

F00681

CIV

Semi-circular natural embayment at the eastern end of F00644

PDF

http://www.

http://www

F00682

CIV

Strip of burnt chipples as a linear trough

PDF

50 cms

20 cms

http://www.

http://www

F00683

CIV

Disturbance, caused by tree roots, to the south of F00644

PDF

http://www.

http://www

F00684

CIV

Root disturbance, to north of F00644

PDF

http://www.

http://www

F00685

CIV

Natural disturbance

PDF

http://www.

http://www

F00686

CIV

Natural disturbance

PDF

http://www.

http://www

F00687

CIV

Natural disturbance caused by roots, at the south eastern corner of F00635

PDF

http://www.

http://www

F00688

CIV

Disturbed line of vertical stones on the north side of F00635

PDF

http://www.

http://www

F00689

CIV

Line of disturbed stones

PDF

http://www.

http://www

F00690

CIV

Patch of loose stones

PDF

http://www.

http://www

F00691

CIV

Patch of burnt chipples

PDF

95 cms

21 cms

http://www.

http://www

F00692

CIV

Vertical slabs disturbed by joint or roots

PDF

http://www.

http://www

F00693

CIV

Line of stones disturb

PDF

http://www.

http://www

F00694

CIV

Disturbed stones to the north of F00601

PDF

http://www.

http://www

F00695

CIV

Root disturbed stones to the east of F00682

PDF

http://www.

http://www

F00696

CIV

Stoney platform, almost certainly natura

PDF

http://www.

http://www

F00697

CIV

Stoney bank, the northern equivalent to F00611, layered (1): topsoil and small stone. (2): stoney rubble

PDF

http://www.

http://www

F00698

CIV

Possible posthole, very shallow

PDF

48 cms

10 cms

F00697

http://www.

http://www

F00699

CIV

Ditch, about 4 metres wide. Layered
(1): brown soil and small stones, equivalent to F00634(5)
(2): brown soil with medium and small stones grading to brown chipples
(3): Grey chipples with limestone dust wash
(4): silting layer at base
(5): layer below (4)
(6): chipple layer cut into layer (5)

PDF

400 cms

http://www.

http://www

F00850

CIV

Wall on F00602 bank

PDF

http://www.

http://www

F00851

CIV

Tip lines and lenses in F00602 bank

PDF

F00602(2)

http://www.

http://www

F00852

CIV

Neolithic ditch to the north of F00850

PDF

F00602(2a)

http://www.

http://www

F00853

CIV

Neolithic ditch to the south of F00850

PDF

http://www.

http://www

F00854

CIV

Area of chipples at northern end of F00602

PDF

F00602(2a)

http://www.

http://www

F00855

CIV

Berm

PDF

http://www.

http://www

F00856

CIV

Period 1 bank

PDF

http://www.

http://www

F00857

CIV

Period 2 wall

PDF

http://www.

http://www

F00858

CIV

Posthole on northwest corner of house

PDF

50 cms

19 cms

http://www.

http://www

F00860

CIV

Posthole

PDF

http://www.

http://www

F00861

CIV

Posthole

PDF

45 cms

30 cms

http://www.

http://www

F00862

CIV
